What ReclaiMe Free RAID Recovery Does

ReclaiMe Free RAID Recovery is a free Windows RAID recovery utility that helps rebuild damaged, failed, or unreadable RAID arrays by detecting the missing RAID layout details. It is aimed at advanced users, IT admins, and anyone staring at a dead NAS, failed RAID controller, or multi-drive setup. Instead of recovering deleted files directly, ReclaiMe Free RAID Recovery focuses on reconstructing the RAID structure so other recovery tools can read the data.

The software analyzes the member disks from a failed RAID array and attempts to detect the important RAID parameters automatically. That includes disk order, stripe size, parity rotation, block size, and start offsets.

Once the RAID layout is identified, the program can build a virtual RAID array, export the detected parameters, or create an image that can be used with compatible data recovery software. Like their Reclaime Free File Recovery software It supports common RAID types, including RAID 0, RAID 5, RAID 6, RAID 10, RAID 5E, and many NAS-based arrays.

This is not a normal undelete tool. It is not for browsing deleted vacation photos. If you aren't running a raid array. This has little use for you. ReclaiMe Free RAID Recovery rebuilds the broken RAID map first, which is exactly the part most regular file recovery programs are terrible at.

Why Someone Would Use This Tool

First, you would need a RAID array. RAID is short for Redundant Array of Independent Disks. It's hardware and software that combine multiple drives so they work together as one storage system. Depending on the RAID type, it can improve speed, protect against a single drive failure, or do a bit of both. People use RAID in NAS boxes, servers, and workstations when they need more storage, or uptime that does not fall over the second one drive dies. This is great, until something goes wrong.

ReclaiMe Free RAID Recovery is useful when the RAID controller is gone, the NAS hardware is dead, or Windows sees the drives but cannot mount anything useful. You connect the member disks to a Windows PC, preferably through SATA or a reliable dock, and let the software work out the RAID structure.

The obvious use case is a failed NAS. Maybe a Synology, QNAP, or Buffalo box refuses to boot, the enclosure died, or a firmware update went sideways. The drives may still contain usable data, but without the correct RAID layout, they are basically digital spaghetti.

That is super helpful because guessing RAID parameters manually is miserable to impossible, and wrong guesses could potentially ruin your data.

Useful Features Worth Knowing

The best part of ReclaiMe Free RAID Recovery is that it tries to detect the RAID configuration automatically. You do not have to know every original setting from the old controller, which is handy because most people do not keep a sticky note labeled "RAID parity rotation" next to their NAS. Although that is still very likely, where you will find their password.

It can work with hardware RAID, software RAID, and many NAS arrays. In some RAID 5 situations, it can still recover the array parameters even when one disk is missing, which is exactly the kind of feature you want when an old NAS has already eaten one drive and is thinking about dessert.

The interface is plain, but that is not a bad thing. RAID recovery software does not need dancing buttons. It needs to show the disks clearly, avoid unnecessary writes, and not trick the user into doing something destructive.

Useful highlights include:

• Detects RAID 0, RAID 5, RAID 6, RAID 10, RAID 5E, and NAS RAID layouts
• Finds disk order, stripe size, parity settings, and offsets
• Can rebuild virtual RAID arrays for recovery work
• Exports RAID parameters for use with other recovery software
• Can create an image of the reconstructed array
• Free to use, without the usual "surprise, pay now" recovery nonsense

How to Use ReclaiMe Free RAID Recovery

Start by shutting down the failed NAS, server, or RAID system. Do not initialize, format, rebuild, or "repair" the array unless you are completely sure what you are doing. Windows may offer to format the disks when you connect them. Don't do that.

Connect the RAID member disks to a Windows PC. Direct SATA connections are best, but good USB docks can work if they expose the drives properly. Try to keep the drives in their original order if you know it, although ReclaiMe Free RAID Recovery can often detect the order itself.

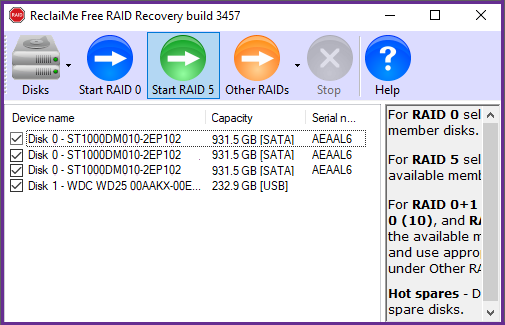

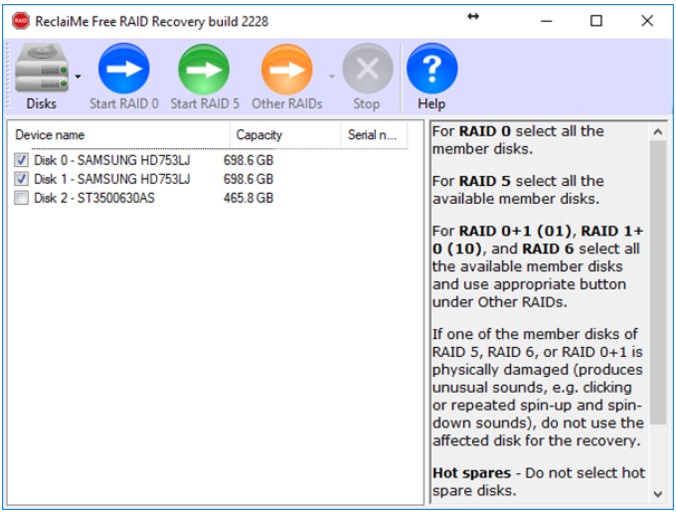

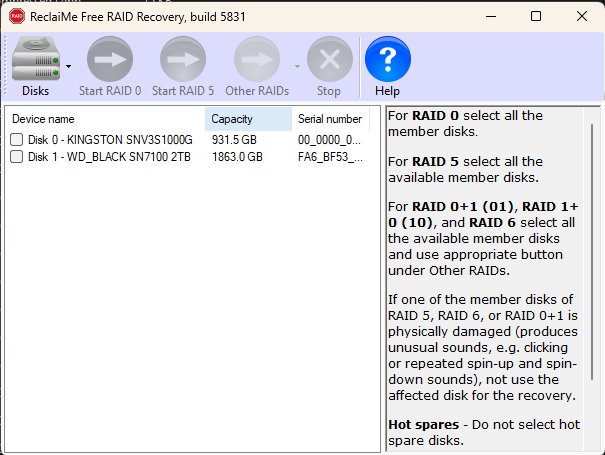

Launch the program and select the member disks. The software will scan them and attempt to identify the RAID configuration. Depending on the disk size and the condition of the array, this can take a while.

Once the RAID parameters are detected, you can export the configuration or use the reconstructed array with another recovery tool. If you need to recover actual files, pair it with a file recovery program such as ReclaiMe File Recovery or another compatible recovery utility.

Limitations or Downsides

ReclaiMe Free RAID Recovery is not beginner-friendly software, even though its interface is simpler than that of many professional tools. You still need to understand the basics of RAID, member disks, parity, and why writing to the original drives is a bad idea.

It also does not recover files directly. The program reconstructs the RAID layout, then you use the recovered parameters or image with another tool to pull the files out.

You may also need a lot of spare storage. If you plan to image a reconstructed 12 TB array, you need somewhere to put that image. Math remains math.

This is also not a replacement for a professional recovery lab when the data is critical, the drives are clicking, or multiple disks are failing. If the array belongs to a business and the only copy of important data is on it, stop experimenting and get professional help.

Geek Verdict

ReclaiMe Free RAID Recovery fills a very specific but important niche. It helps rebuild the structure of failed RAID arrays, especially when a NAS, RAID controller, or multi-drive setup becomes unreadable.

What we like is that it focuses on the hard part: figuring out disk order, stripe size, parity rotation, and offsets without making the user manually guess everything. Advanced users, IT admins, and careful DIY recovery types should keep this one in the toolbox. If your NAS has gone belly-up and the drives still appear healthy, ReclaiMe Free RAID Recovery is worth trying before paying for enterprise software or making that very expensive call to a recovery lab.
