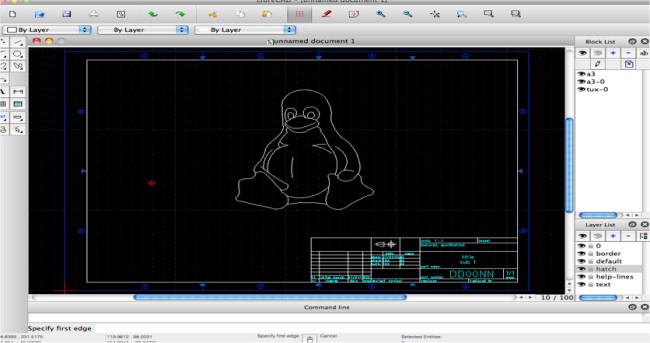

LibreCAD is an Open Source 2D CAD (computer-aided drafting) application that provides an easy-to-use graphics suite for all major operating systems. LibreCAD portable is also available.

LibreCAD can import a variety of formats, including DXF, LFF, CXF, JWW, BMP, GIF, ICO, JPG, PNG, PPM, SVG, TIFF, WBMP, XBM, and TGA. Moreover, it offers export options in multiple formats such as DXF, LFF, CXF, DDS, ICNS, PBM, PNG, ICO, BMP, SVG, TIFF, ICO, and PDF.

With LibreCAD, you have access to a range of editing and drawing options. This includes the ability to add lines, points, circles, ellipses, splines, polylines, and text boxes to your drawings. You can also zoom in and out effortlessly. The software allows you to move, copy, align, rotate, mirror, scale, and trim elements. Moreover, you can lengthen, bevel, divide, stretch, delete, and explode text into letters.

LibreCAD lets you effortlessly calculate the distance between two points or from a point to an entity. It also allows you to determine the angle between two lines and the total length of a selected element. Additionally, managing layers is made simple, as you can easily show, hide, add, remove, edit, or lock them with just one click of a button.

LibreCAD Features:

No language barriers – it's available in a large number of languages, with more being added continually.

GPLv2 public license – you can use it, customize it, hack it, and copy it with free user support and developer support from our active worldwide community and our experienced developer team.

LibreCAD is an Open Source community-driven project: development is open to new talent and new ideas, and our software is tested and used daily by a large and devoted user community; you, too, can get involved and influence its future development.
