The NetRouteView application was developed to be a GUI alternative to the standard route utility (Route.exe) of Windows operating system.

It displays the list of all routes on your current network, including the destination, mask, gateway, interface IP address, metric value, type, protocol, age (in seconds), interface name, and the MAC address.

NetRouteView also allows you to easily add new routes, as well as to remove or modify existing static routes.

NetRouteView doesn't require any installation process or additional dll files. In order to start using it, simply copy the executable file (NetRouteView.exe) to any folder you like, and run it.

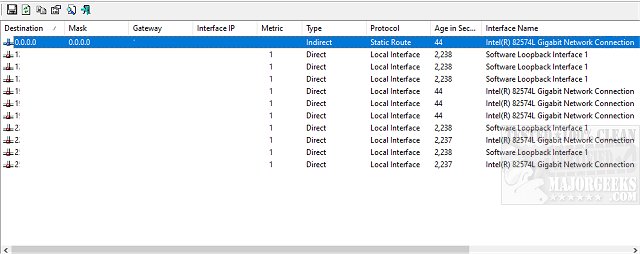

The main window of NetRouteView displays the list of all your network routes, like the 'print' command in the route utility of Windows. You can select a single route and then delete it (Del key) or modify it (Ctrl+M). Be aware that only routes with 'Static Route' value in the Protocol column, can be deleted or modified. You can also add a new route by using 'New Route' option (Ctrl+N).

Command-Line Options:

/stext
Save the routing table into a regular text file.

/stab
Save the routing table into a tab-delimited text file.

/scomma
Save the routing table into a comma-delimited text file (csv).

/stabular
Save the routing table into a tabular text file.

/shtml
Save the routing table into HTML file (Horizontal).

/sverhtml
Save the routing table into HTML file (Vertical).

/sxml
Save the routing table into XML file.
