NVIDIA Inspector 184.108.40.206
Date: 08/19/2015 07:46 AM
Size: 232 KB
Requires: Win 10 / 8 / 7 / Vista / XP
Downloads: 105419 times
[ Comments Screenshots ]
TIP: Click Here to Repair/Restore Missing Windows Files
Description translated by Majorgeeks.com from German, so forgive any grammar mistakes:
A tool for reading all the information the graphics card from the NVIDIA drivers and overclocking.
Actually, it should only be a tool to allow more detailed dumps of NVIDIA graphics cards to the GPU to improve Observer gadget.
It is now but a lot more to come, so that I would put it to you as a standalone tool.
All data and functions of almost 1:1 come from the NVIDIA driver.
So if something does not work, this is also a limitation to 99% of the NVIDIA driver which I cant change anything.
Functions that go beyond the capabilities of the NVIDIA driver, it will not be using this tool. It is therefore not "real" voltage-sensor evaluation on display through I2C etc. . Come
In addition to the graphics card information, the tool also the possibility of overclocking. It should be clearly stated that it can be physically destroyed by overclocking the hardware. But I take no responsibility of course. Use is entirely at your own risk!
It is also possible with the new generation of graphics cards from NVIDIA (Fermi), the GPU voltage for 3D profile fit. This is only for these cards from NVIDIA provided in the driver.
In addition, also allows the graphics card fan for many NVIDIA cards manually control themselves. This can be helpful, try overclocking a constant cooling accelerate.
With the new generation of 256 drivers, the profile system was upgraded with a corresponding API. Therefore it is now installed at 256 + drivers also possible to adapt the games with the NVIDIA Inspector profile settings of the NVIDIA driver.
It can create new profiles, edit or delete existing ones. Profiles can also be imported and exported. You can also adjust all the settings available when these drivers are not on the "Control Panel".
Since version 1.95 it is now a feature available to track the progress of the hardware sensors. This is for all supported NVIDIA video cards collected simultaneously in one window possible.
Moreover, the collected data to be recorded and saved as CSV.
Save energy when using multiple monitors
Since NVIDIA GDDR5 graphics card is used as a video store, there is a limitation on the power management features. If more than a single display with different resolutions / timings are connected to the graphics card, the drivers that automatically prevents downshift in energy-saving "Performance States (P-States).
The reason is, according to NVIDIA in a hardware limitation in the use of GDDR5 memory, which can cause change of P-states to flicker. This issue is therefore not limited to NVIDIA graphics cards.
Unfortunately, the driver the user does not choose the flicker to be accepted instead to save power. This fact has turned to a new feature "Multi Display Power Saver".
The driver is forced to do most in the low P-state change. Now you can configure applications that may change as an exception to a higher P-state. A modulation based on the current utilization is also possible.
This feature requires an NVIDIA graphics card has at least the following three P-states: P0, P8 and P12. The latest drivers are also provided.
Version History for NVIDIA Inspector:
updated setting constants until driver r343
updated custom settings
override reported default value for aa gamma correction and shader cache
fixed donation link
show memory vendor shortname after memory type
you can now add "-silent" param after the nip file for silent profile import
creating startup tasks will add 30sec task delay
creating seperated startup tasks for each perf level
fixed default values for non p0 state oc controls
fixed mdps apps drag & drop from non elevated desktop
fixed rop calculation for maxwell 2 cards

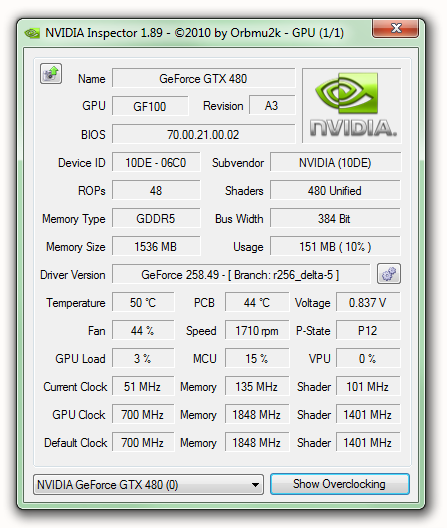

Screenshot for NVIDIA Inspector
