TCPHandshakeTimer is a valuable tool for monitoring TCP conversations and analyzing response times, helping diagnose network and application performance issues. When users report slow response times, the initial assumption often falls on the network; however, TCPHandshakeTimer provides critical insights to clarify the situation.

Why Use TCPHandshakeTimer?

By measuring the initial TCP handshake times, from sending the SYN packet to receiving the SYN/ACK reply from the remote host, TCPHandshakeTimer calculates the network's round-trip response time, excluding application delays. A quick SYN-to-SYN/ACK time typically indicates that the network is functioning properly, prompting further investigation into the application itself.

Not For Direct App Monitoring

Although TCPHandshakeTimer does not monitor application performance directly, it offers data that can signal potential issues with applications or network devices along the path. Even if SYN-to-SYN/ACK times are fast, high-load network devices can still introduce delays, so you should examine the entire network path.

The TCP conversation is continually monitored and reports on:
    ● SYNs without receiving a SYN/ACK, showing a non-responsive remote host. If a SYN is eventually received, the remote host application may be highly utilized and responding very slowly.
    ● Delays between packets indicating a remote host application experiencing delays in responding.
    ● Time from TCP conversation start to finish. The total time from the initial SYN packet to the FIN packet, which closes the TCP conversation, can show delays in data transfer.
    ● A 0 window size shows that a host is requesting a pause in the conversation.

What It Does

TCPHandshakeTimer identifies the process associated with a specific TCP connection. If it detects a FIN packet without a corresponding SYN packet, it indicates the process terminated the connection, which causes it to display "."

Additionally, "" may appear if TCPHandshakeTimer lacks the necessary permissions to access the process, such as with certain Windows system processes.

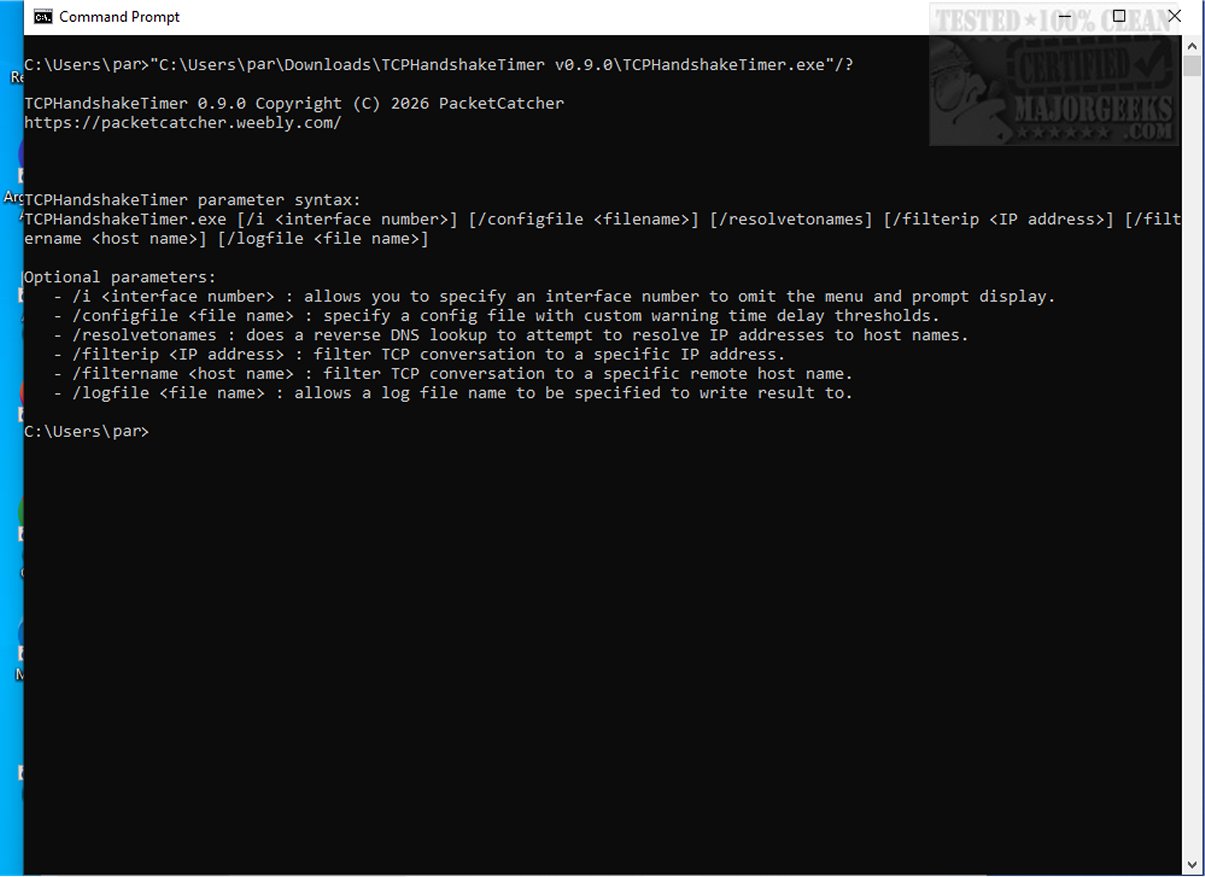

TCPHandshakeTimer Syntax

TCPHandshakeTimer syntax is available here as well as within the archive.

Geek Verdict

TCPHandshakeTimer is an invaluable tool for accurately measuring the initial TCP handshake timings. It tracks the duration from when the SYN packet is dispatched to when the SYN/ACK reply is received from the remote host. This critical measurement provides insight into the network's round-trip response time, deliberately excluding any delays that may occur in application response. A minimal time between the SYN and the SYN/ACK signifies an efficient network response. So, if you see this quick reaction, it's time to shift your focus to assessing application performance.
